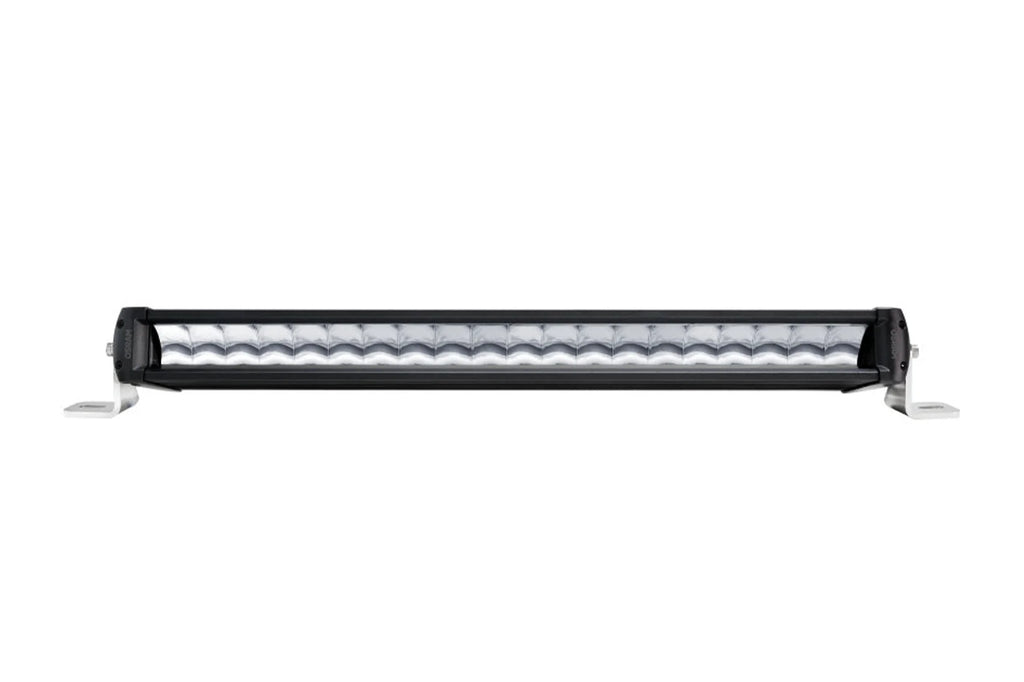

OSRAM LEDriving LIGHTBAR Lights FX ECE R10, R115 one piece

Description

The LEDriving LIGHTBAR FX500-SP/-CB belong to the Functional Series and feature a fully ECE compliant auxiliary high beam. OSRAM offers the product in two versions: Spot (SP) and Combo (CB). The Spot beam pattern provides an improved far field illumination up to 450 meters with a 5°beam angle. The Combo beam pattern shows an improved far and near field illumination providing an up to 440 meters light beam with a 5°beam angle. The LED lights in Cool White generate an intense light up to 6000 Kelvin and are available for 12 and 24 volt vehicles. They are designed in a robust and compact design with a long lifetime of up to 5000 hours thanks to the integrated driver and thermal management system. Due to extremely robust polycarbonate lens, the lights endure heavy-duty applications and feature multiple voltage protection. OSRAM offers a 5 year guarantee on the LEDriving LIGHTBAR FX500-SP/-CB. Refer to www.osram.com/am-guarantee for precise conditions. Driving lights must be installed in pairs for 12/24 V-vehicles. Electrical data Nominal voltage 12/24 V Nominal wattage 70 W Test voltage 13.5 V Photometrical data Luminous flux 5500 lm Color temperature 6000 K Light distance at 1lx [PIM] 440 m Dimensions & weight Height 77.0 mm Width 94.0 mm Length 655.0 mm Product weight 2100.00 g Lifespan Lifespan Tc 5000 h Connector to lamp DT Connector Product type (off-road vs. on-road) On-road Approval marks - approval E4 approval Type of protection IP67 Logistical data Commodity code 851220009000 Packaging information Dimension l x w x h 1 piece x 638mm x 137mm x 90mm 2338.00g 7.87dm³ 4 pieces x 655mm x 295mm x 208mm 10166.00g 40.19dm³

Suitable for

Universal Ledriving lightbar

Fitting and installation

Fitting instructions included.

Package Contains

Dimension l x w x h 1 piece x 638mm x 137mm x 90mm 2338.00g 7.87dm³

Certificates

ECE category ECE R10, R115 These are high quality aftermarket parts.
