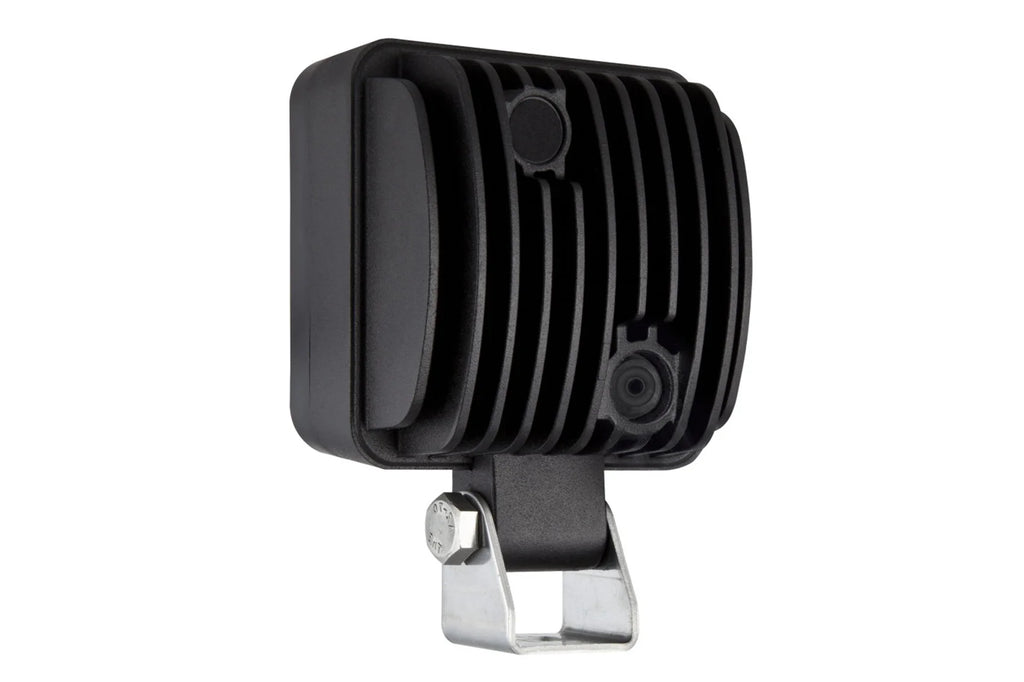

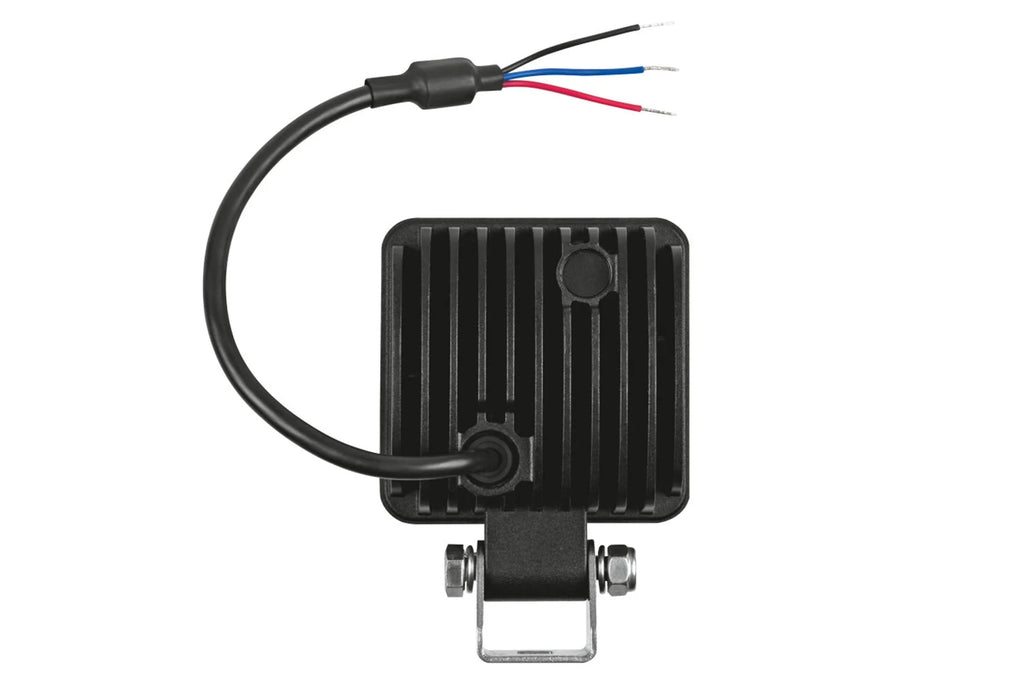

OSRAM LEDriving CUBE Lights MX85 ECE R10 one piece

Intro

These LEDriving cubes have improved illumination thanks to high brightness and are designed in a robust and compact way with a long lifetime.

Suitable for

Universal LEDriving Cube

Description

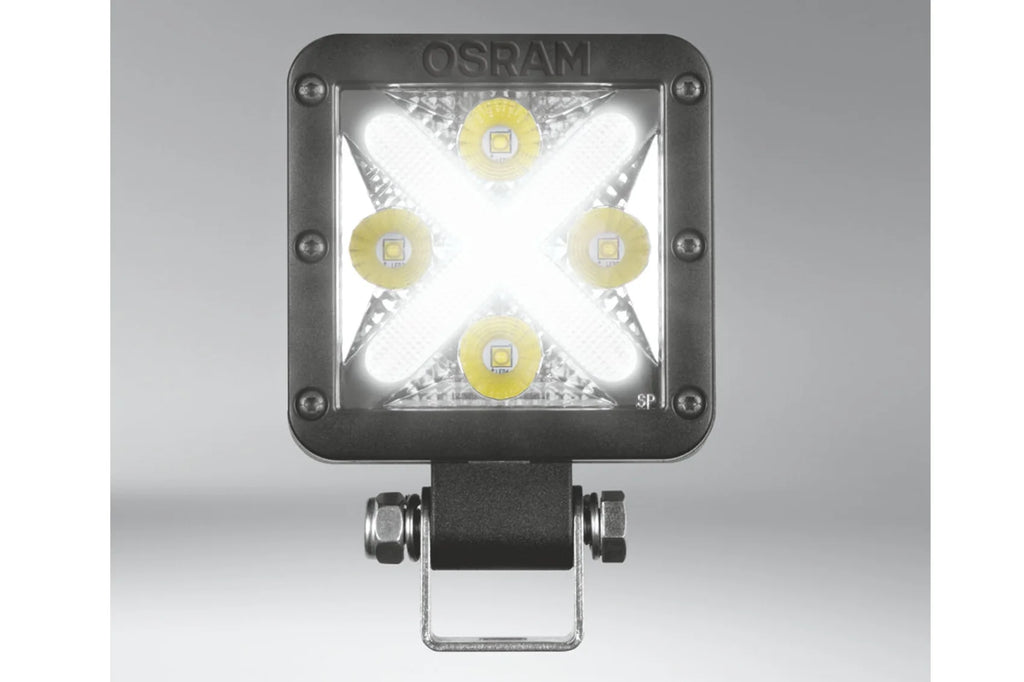

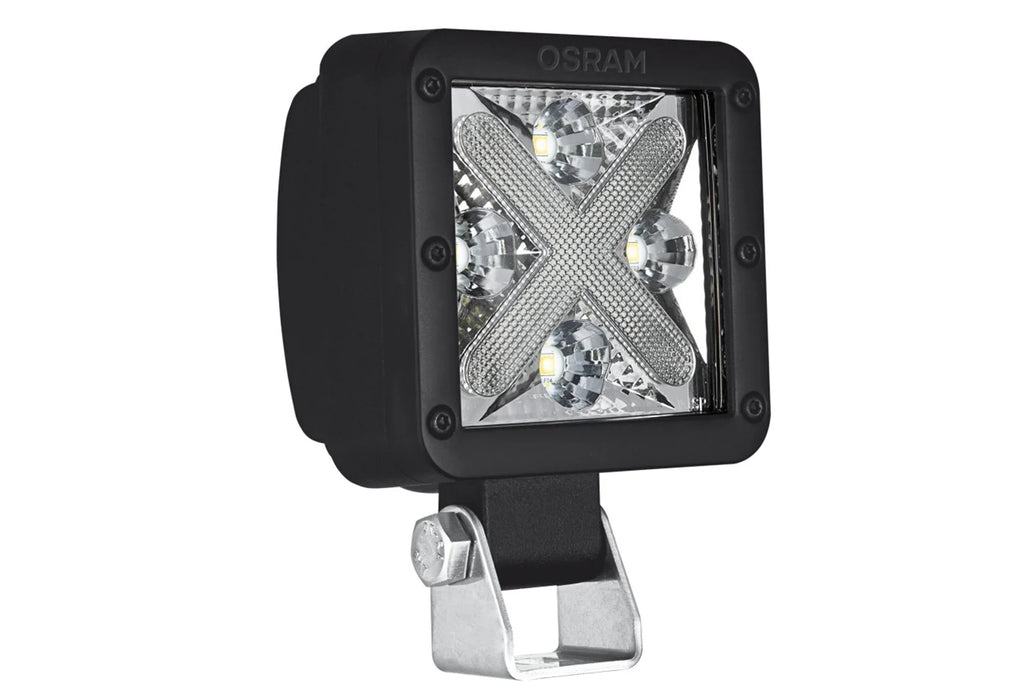

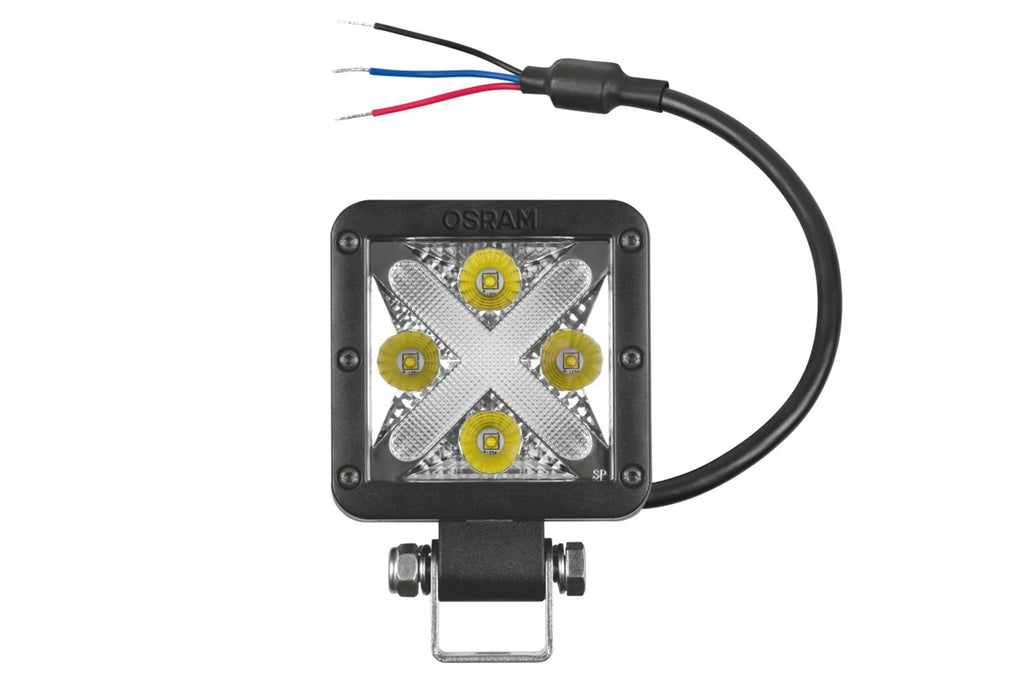

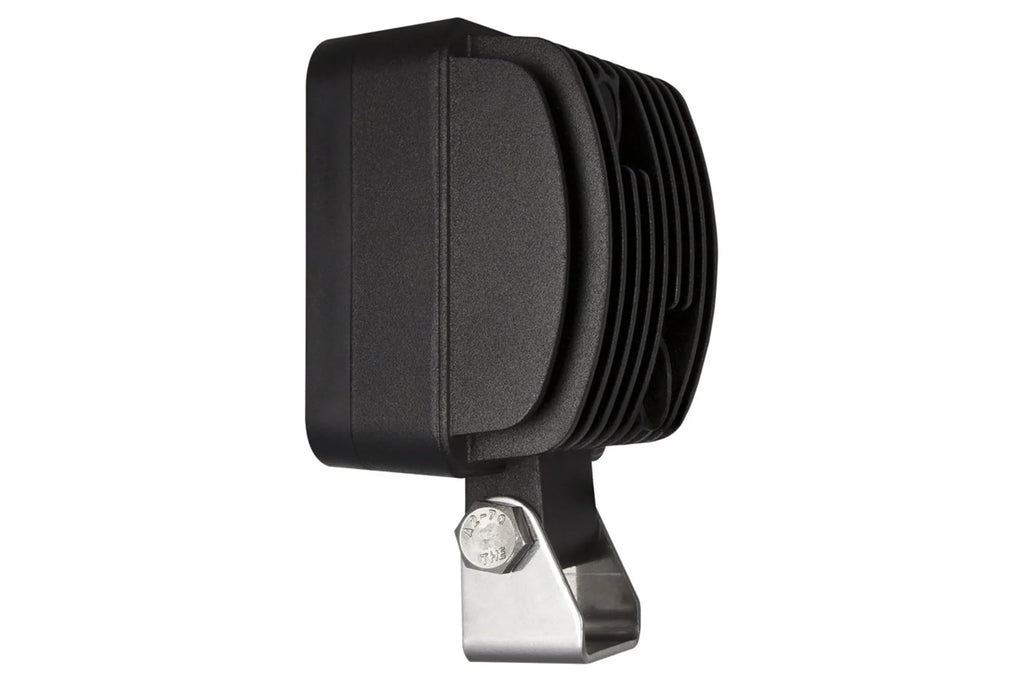

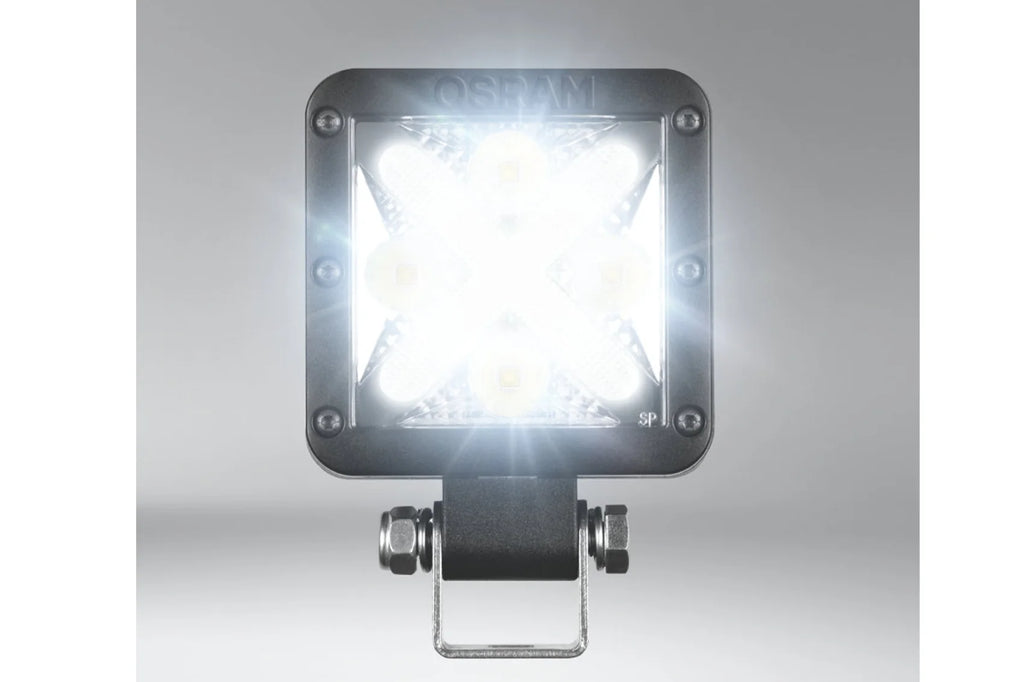

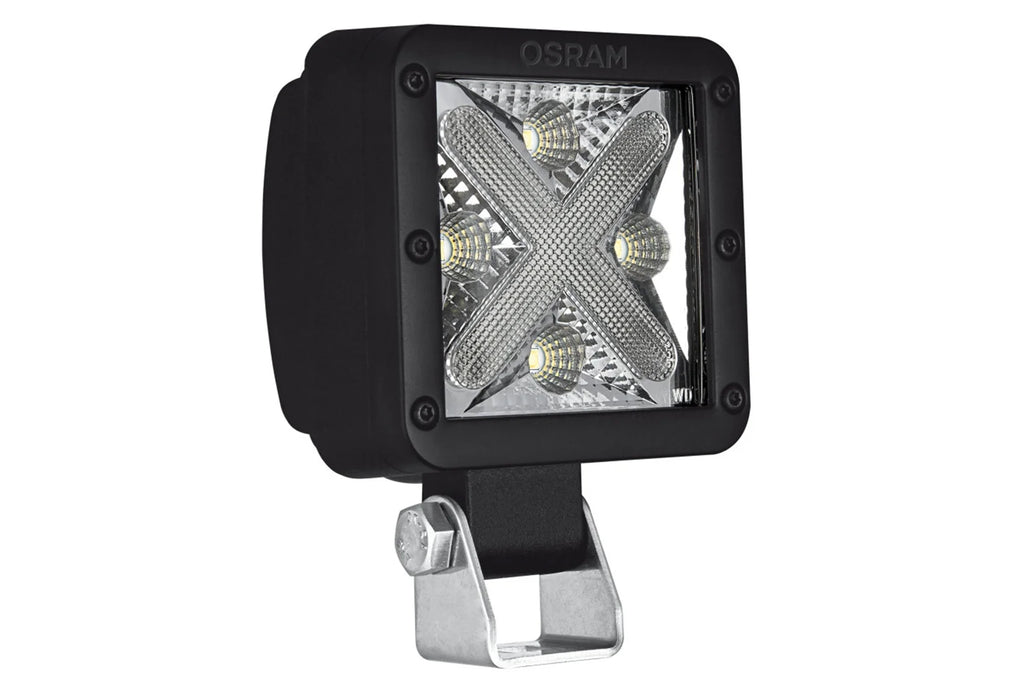

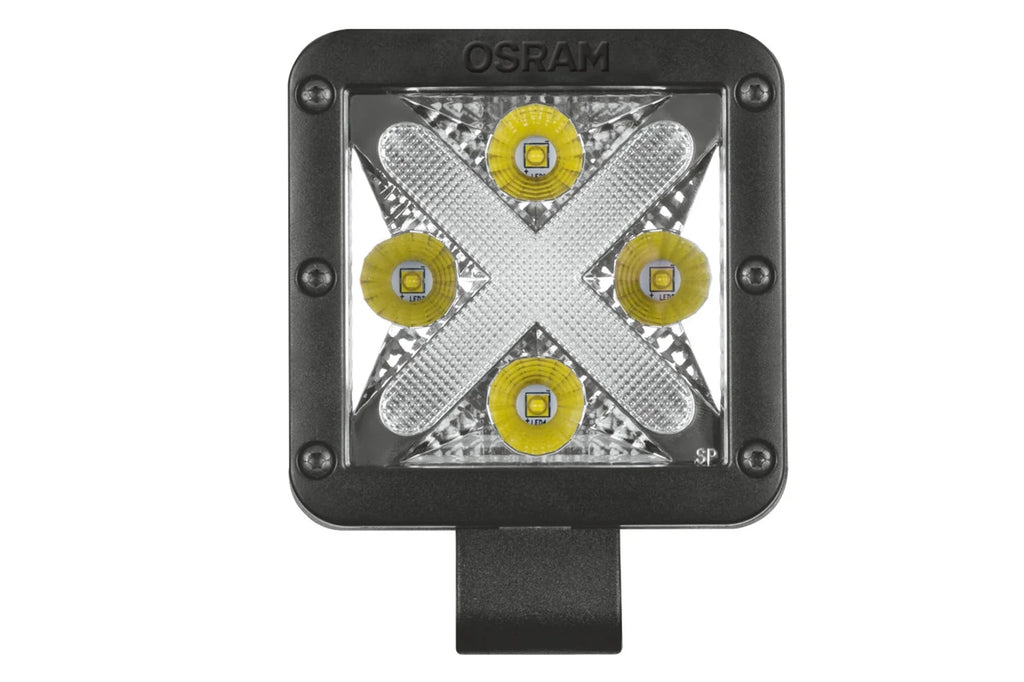

The LEDriving CUBE MX85-SP/-WD are the LED working lights of the Multifunctional Series that combine two LED lighting performances: working light and stylish X shape light. The LEDriving CUBE MX85 is available as Spot (SP) which offers a far field illumination up to 110 meters with a 13,5° beam angle as well as in the Wide beam pattern (WD) which is specialized in near field illumination with a light beam of up to 55 meter and a particularly wide beam angle of 43,5°. The LED lights in Cool White generate an intense light of 6000 Kelvin, available with 12 volt. The products are designed in a robust and compact design with a long lifetime of up to 5000 hours. They are equipped with extremely robust polycarbonate lenses to endure heavy-duty applications and have multiple voltage protection. These LED lights are characterized by an extremely high optic efficiency, homogeneous light distribution and reduced glaring. OSRAM offers a 5 year guarantee on the LEDriving CUBE MX85-SP/-WD. Refer to www.osram.com/am-guarantee for precise conditions. Electrical data Nominal voltage 12.0 V Nominal wattage 20 W Test voltage 13.5 V Photometrical data Luminous flux 1250 lm Color temperature 6000 K Light distance at 1lx [PIM] 110 m Dimensions & weight Height 121.0 mm Width 57.0 mm Length 85.0 mm Product weight 500.00 g Lifespan Lifespan Tc 5000 h Additional product data Application (Category and Product specific) Individual installation Connector to lamp Wire Kit Product type (off-road vs. on-road) Off-road Type of protection IP67 Country specific categorizations Order reference LEDDL101 12V SP

Fitting and Installation

Fitting instructions included.

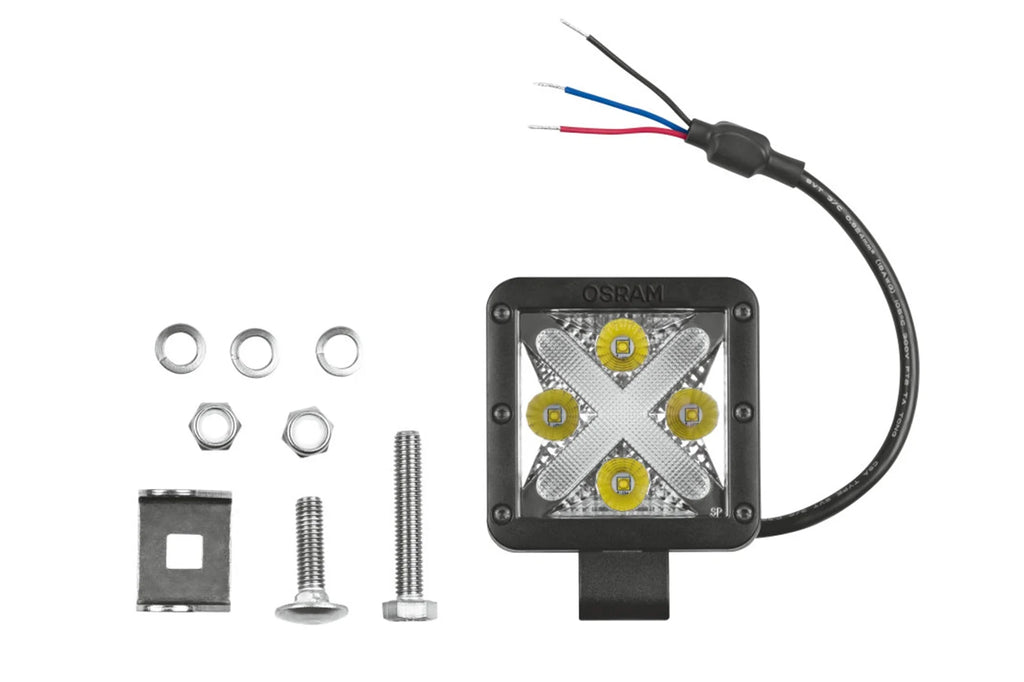

Package Contains

1 piece

Certificates

Approval marks - approval ECE category ECE R10 E6 approval These are high quality aftermarket parts.
